Professional Solid State Video Recorders

Unthrottle your camera's potential

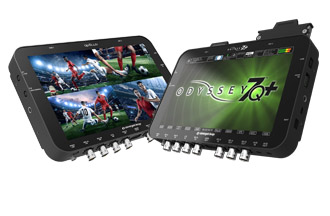

Odyssey7Q+

Professional 7.7" OLED monitor upgradable to full professional recorder functionality

Brand: Convergent Design
Code: CD-Odyssey7QPLUS
Warranty: 12 Months

The Odyssey7Q+ is a professional 7.7" OLED monitor with high-end monitor features, including Waveform, Zebras, Histogram, Vectorscope, Focus Assist, False Colour, Timecode Display and Audio Level Meters, and 1:1 Pixel mode. Odyssey combines the necessity of an OLED monitor with comprehensive tools, with robust recording options suitable for DSLR to 4K cine applications.



Odyssey7Q+:

Having the Best Professional Monitor/Recorder is a Big Plus!! The Odyssey7Q+ is the most advanced, most capable, most versatile monitor/recorder in the world. The Odyssey7Q+ can record HD/2K/UHD/4K. It can record them via SDI and HDMI. It can record RAW (with Record Options), uncompressed DPX, and Apple ProRes 422 (HQ).
  • HD/2K/UHD/4K
  • 4K/UHD capture over HDMI or SDI
  • SDI Single/Dual/Quad Link
  • RAW to Apple ProRes Conversion
  • 4K/UHD->2K/HD conversion
  • Low Power/Light Weight
  • Intuitive touch-screen interface

The Odyssey7Q+ is the most advanced, most capable, most versatile monitor/recorder in the world. The Odyssey7Q+ can record HD/2K/UHD/4K. It can record them via SDI and HDMI. It can record RAW (with Record Options), uncompressed DPX, and Apple ProRes 422 (HQ). The Odyssey7Q+ features an OLED 1280x800 monitor with true blacks, accurate colours, extended colour gamut and a 176 degree viewing angle.

Along with the best image in the industry, the Odyssey7Q+ also features an extensive array of image analysis tools, including an RGB waveform, RGB Histogram, False Colour, Pixel Zoom with finger drag, three-mode Focus Assist and monitoring LUTs.

The unique Multi-Stream Monitoring mode allows up to four HD video inputs to be viewed at once in a quad-split view or to be live-switched between in full screen. The Odyssey7Q+ weighs a little over one pound, is just one inch thick and can run on any power source from 6.5-34 volts.



Convergent Design Approved SSDs

  • Samsung 850 PRO 128GB
  • Samsung 850 PRO 256GB
  • Samsung 850 PRO 512GB
  • Samsung 850 PRO 1024GB (1TB)
  • Samsung 850 EVO 1000GB


Odyssey 7Q+ Raw Bundle and Apollo Option:

Cameras covered by the Odyssey RAW Bundle include the ARRI ALEXA, Canon C500 and C300 MK2, Sony FS7 and FS700, IO Industries Flare 2KSDI, Indiecam indieGS2K, and upcoming support for the AJA CION and IO Industries Flare 4KSDI. As new RAW cameras are supported by the Odyssey monitor/recorders, they will be added to the Odyssey RAW Bundle. Also now available; Panasonic Varicam LT.

The Apollo Option provides unmatched power and flexibility for multicamera productions. Monitor, record and live switch up to four simultaneous HD signals via 4x SDI Inputs or 3x SDI and 1x HDMI input. A fifth channel is recorded with either the live switch or quad split view.

Titan Option (for Odyssey7Q+ / Apollo):

Titan is the latest option for the Odyssey & Apollo monitor/recorders.  Titan uses one 4K camera to create three HD video signals.  One frame is a SuperSample of the full image area and two are windows selected from within the original input.  These windows can be panned smoothly through the 4K field and the three angles can be Live-Switched.  All four HD signals can be recorded simultaneously in Apple ProRes with matching timecode and file names.

Click here to find out more about more the Titan, RAW Bundle or Apollo upgrade codec's.



What's in the box:

1 x Odyssey 7Q+ Unit
1 x Odyssey 7Q+ Australian / New Zealand PSU
1 x SDI Cable
1 x HDMI CtoD Cable
1 x 2.5” SSD Plastic Carrying Case
1 x SSD Handle Pack of 5
1 x USB3/ to SSD Adapter



Apollo

A Production Studio In The Palm Of Your Hand

Brand: Convergent Design
Code: CD-APOLLO
Warranty: 12 Months

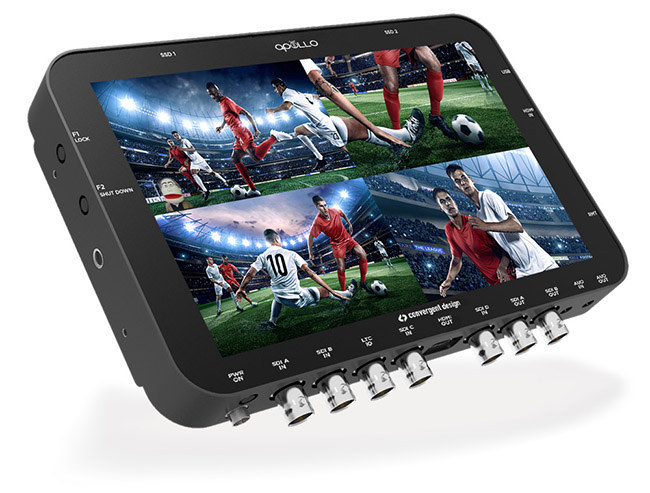

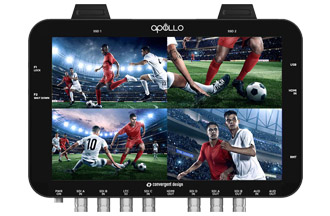

Apollo:

Apollo is a portable multichannel monitor/recorder. Apollo can simultaneously record up to four HD video signals, along with a fifth channel of either a live-switch between the four or a quad-split reference view. Apollo can also function as a four-channel live switcher while simultaneously recording the four isolated HD video signals. The size of a small tablet and able to run for hours on a camcorder battery, Apollo is truly portable and the only device of its kind that can both record multiple HD camera feeds as well as live-switch between them. It’s a production studio in the palm of your hand.

All cameras stay in perfect sync with matching timecode.  A single SSD contains all of the multi-camera media, dramatically reducing turnaround time for post.  There are two SSD slots on Apollo, allowing for twice the record time or mirror recording for safety backup.  Apollo utilises industry-standard 2.5” SSD media, either manufactured by Convergent Design or qualified 3rd party models. Using the new Apollo Media Managerâ„¢ App, recordings can be exported as separate Apple ProRes files or as a single multi-camera QuickTime file that drops directly into the timeline of supporting NLEs such as Final Cut Pro-X.



Convergent Design Approved SSDs

  • Samsung 850 PRO 128GB
  • Samsung 850 PRO 256GB
  • Samsung 850 PRO 512GB
  • Samsung 850 PRO 1024GB (1TB)
  • Samsung 850 EVO 1000GB



What's in the box:

1 x Apollo Unit
1 x Apollo Australian / New Zealand PSU
1 x SDI Cable
1 x HDMI CtoD Cable
1 x 2.5” SSD Plastic Carrying Case
1 x SSD Handle Pack of 5
1 x USB3/ to SSD Adapter




Pricing
  • Odyssey 7Q+:
  • Apollo:
  • Odyssey Case:
  • SSD Media Tabs:
  • Sun Hood:
  • Screen Protector:
  • USB3 to SATA Adapter:
