Chameleon Converter Products

Video Converters

AV Converters

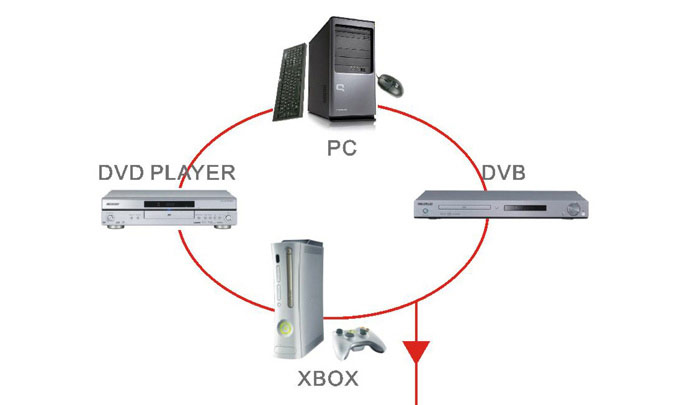

Chameleon 3 x 1 HDMI Switch

Brand: Chameleon
Code: CLKV331
Warranty: 12 Months

The Chameleon 3 Port HDMI Switch allows you to connect up to 3 HDMI sources to a single display. Simply switch input sources via the included remote control or via the button mounted on the switch. Perfect for connecting amplifiers, Sony PS3, Blu Ray players or set -top boxes to displays with only a single HDMI input. No power supply is required for HDMI cables under 10 metres.

An optional 5V 1A power supply can be used for HDMI cables up to 15 metres in length. High quality components mean these units are designed to last a lifetime. The Chameleon 3 Port HDMI Switch supports up to and including full 1080p/1920×1200 High Definition content with HDMI 1.3b compliance.

Features

  • Switch between 3 HDMI sources easily.
  • Powered from HDMI cable - ensures high-quality signal transmission.
  • HDMI Resolutions: 480i/576i/480p/576p/720p/1080i/1080P.
  • HD Audio format: LPCM, Dolby-AC3, DTS7.1, Dolby True HD/DTS-HD master Audio.
  • Bandwidth: Up to 225MHz.
  • 24K gold plated HDMI connections.
  • Compliant with HDMI 1.3b and HDCP.

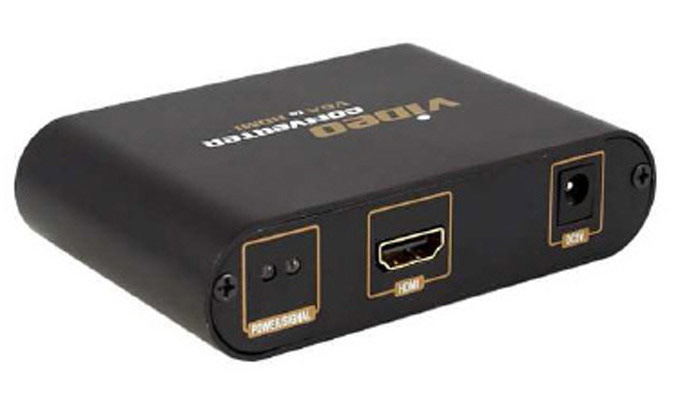

Component to HDMI

Brand: Chameleon
Code: CLKV354
Warranty: 12 Months

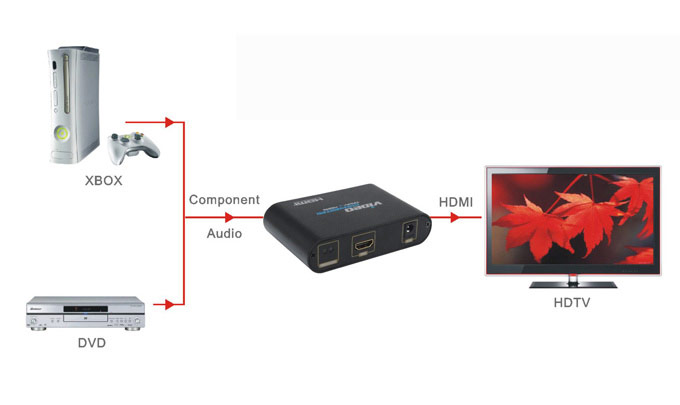

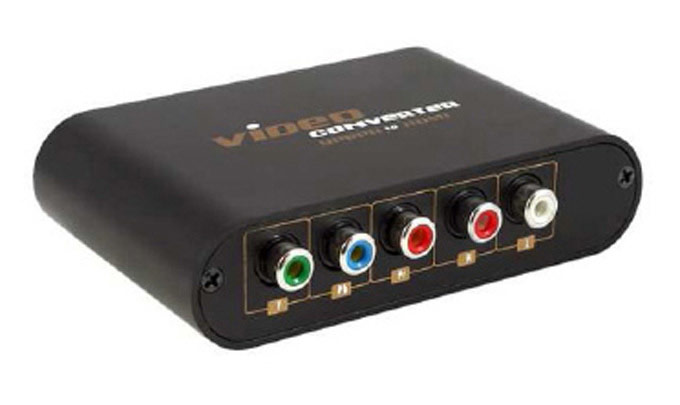

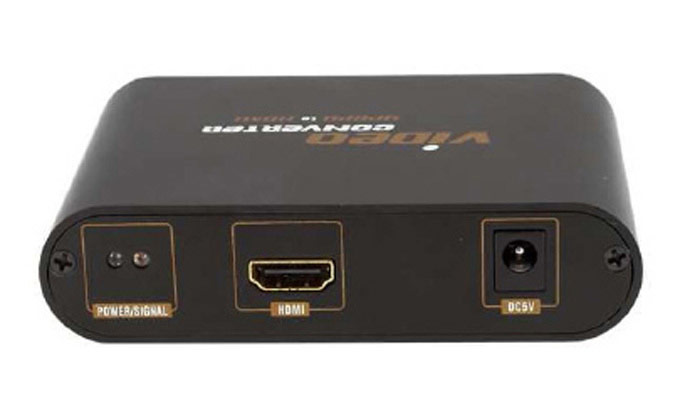

The Chameleon Component to HDMI Converter allows older analogue devices to be integrated seamlessly into the modern home theatre. It connects component video home theatre devices to HDMI-compliant digital monitors or other HDMI input devices. With the Chameleon Component to HDMI Converter older home theatre devices can be easily connected to any HDMI display for the full digital video and audio experience.

Features

  • Convert HD component video YPbPr and Audio R/L signal to HDMI output.
  • Input Stereo Audio: 1 X YPbPr video input + 1X Stereo Audio input are embedded into HDMI signal.
  • Component Video Resolutions supported: 480i/p, 576i/p,720p,1080i and 1080p.
  • HDMI Transmission Rate: 5Gbps.
  • Compliant with HDMI 1.3b and HDCP.
  • 5V1A power supply included

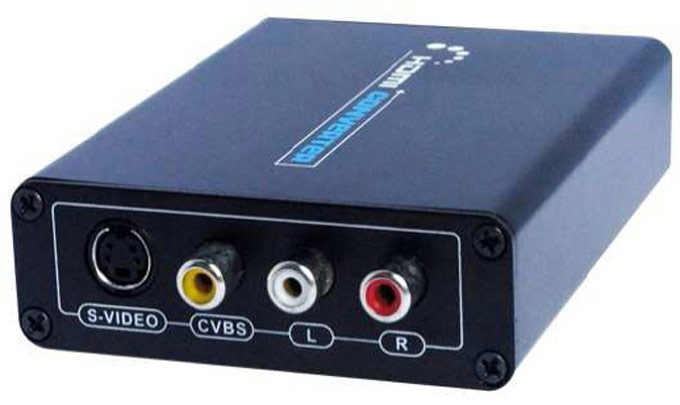

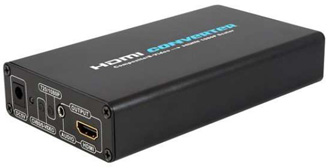

Chameleon Composite/S-Video to HDMI Upscaler

Brand: Chameleon
Code: CLKV363
Warranty: 12 Months

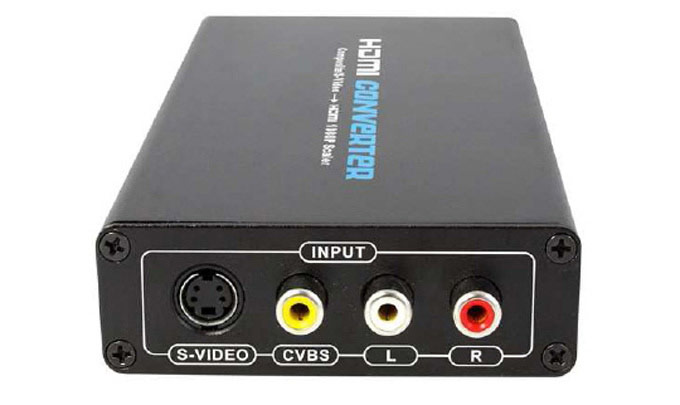

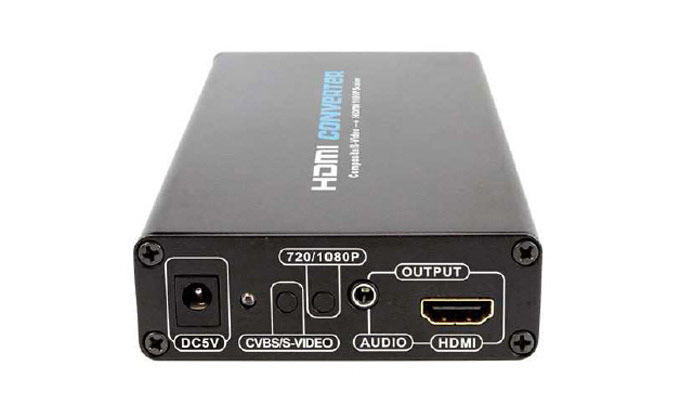

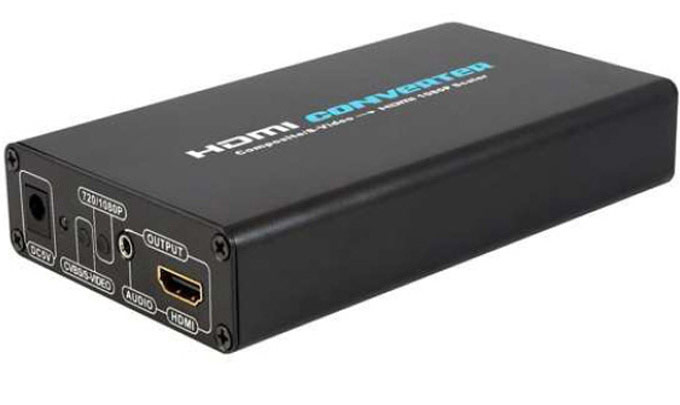

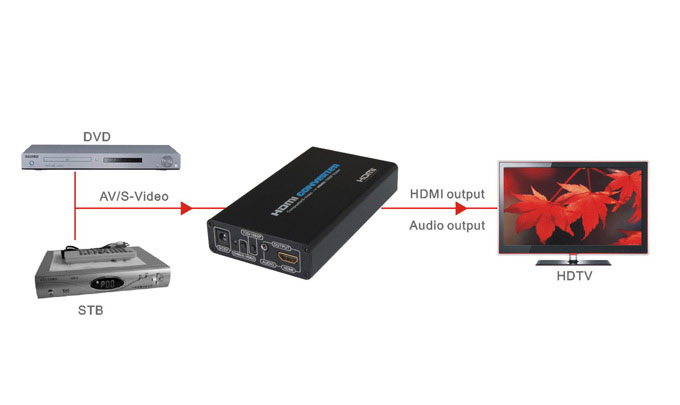

The Chameleon Composite/S-Video to HDMI Upscaler converts SD composite or S-video signals to HD HDMI. This unit allows you to output to either 720p or 1080p. The unit will accept input from a composite or S-video source, 3.5mm audio source and output it to HDMI.

Features

  • Up-scales Composite Video or S-Video up to full HD 1080p.
  • HDMI output can be set to 720p/60Hz or 1080p/60Hz.
  • Input video - NTSC and PAL is automatically detected and the output adjusted.
  • Input / Output signal settings and output resolution is auto-stored and will maintain settings even if powered down.
  • Composite Video and S-Video share the same audio input.
  • Compliant with HDMI 1.3b and HDCP.
  • 5V2A power supply included.

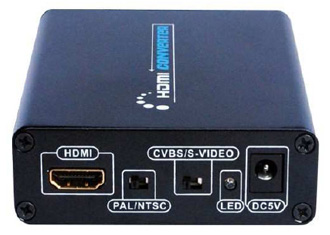

Chameleon HDMI to AV

Brand: Chameleon
Code: CLKV381
Warranty: 12 Months

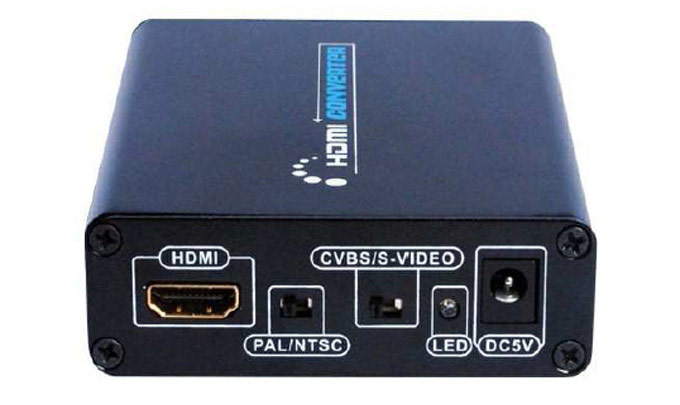

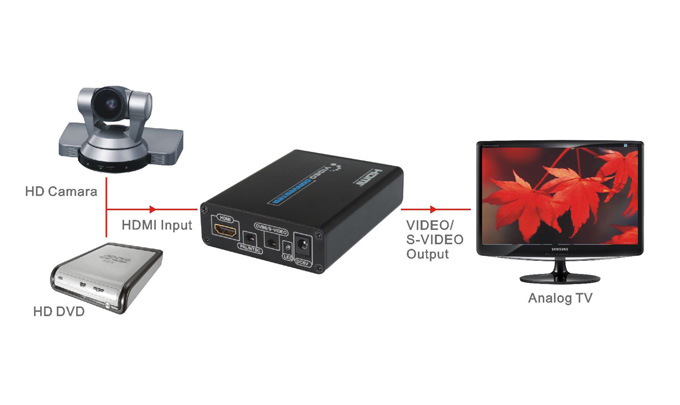

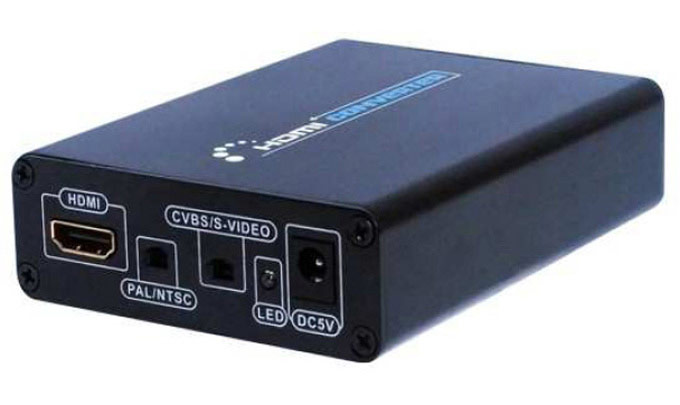

Convert HDMI digital video to older analogue devices and/or displays. Converts HDMI signal to analogue CVBS, S-Video and audio (L/R) signal. Allows devices equipped with only HDMI output to be connected to analogue TV.

Features

  • Input HDMI Resolution: 480p (60Hz), 576p (50Hz), 720p (50Hz / 60Hz),1080i (50Hz / 60Hz), 1080p (50Hz / 60Hz)
  • Output Signal: Composite Video, S-Video
  • Output Video Systems: PAL/NTSC
  • nnnn
  • 5V2A power supply included

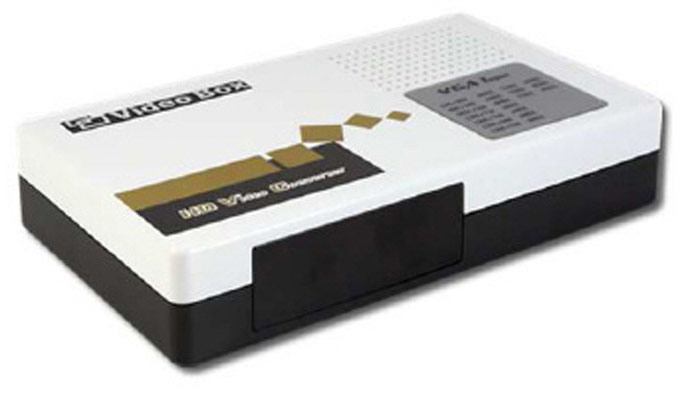

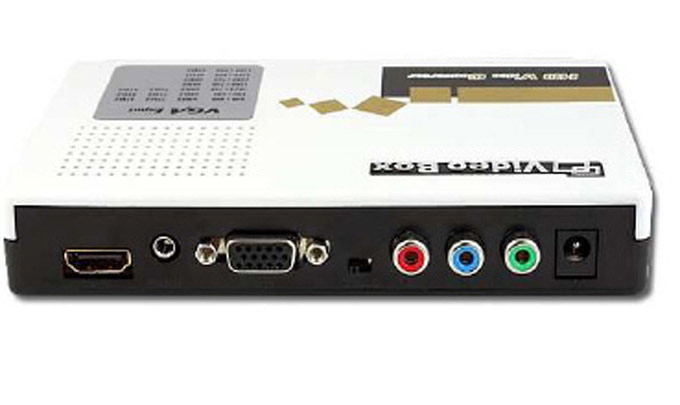

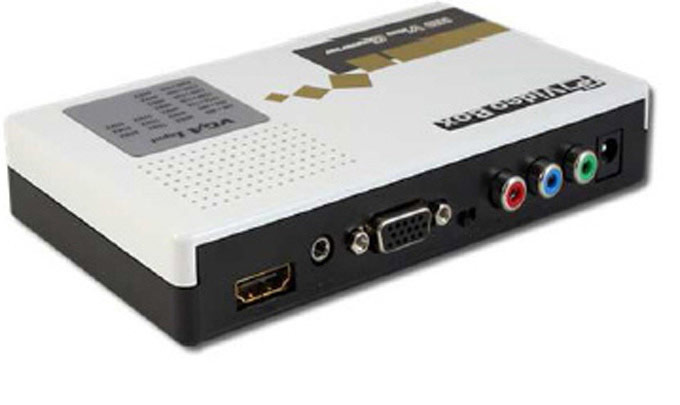

Chameleon VGA/Component to HDMI

Brand: Chameleon
Code: CLKV351
Warranty: 12 Months

The Chameleon VGA \ Component to HDMI converter allows PC users to display their image content not only on their PC monitor but also on their HD television by converting VGA input into HDMI. This unit includes 2 channel LPCM audio support and is HDMI 1.3 compliant. Stereo phono audio input is processed along with the VGA input to give you a perfectly synchronised HDMI output.

Features

  • 1 x VGA, 1 x Component Video (Y Pb Pr), 1 x Stereo AUDIO (R/L) inputs
  • 1 x HDMI output
  • True scaler function, output is fixed at 720p to avoid compatibility problems.
  • Compliant with HDMI 1.3b and HDCP.
  • 5V2A power supply included.

Pricing
  • 3 x 1 HDMI Switch:
  • Component to HDMI:
  • Composite SVHS to HDMI:
  • HDMI to AV:
  • VGA / Component to HDMI:
