China’s Anhui TV Outfits Its First 4K OB Van with Blackmagic Design’s 12G‑SDI Workflow
Fremont, CA – March 18, 2019 – Blackmagic Design today announced that China’s Anhui TV designed its first 4K OB van with Blackmagic Design 12G-SDI products, including URSA Broadcast cameras, ATEM 4 M/E Broadcast Studio 4K, ATEM Television Studio Pro 4K, Smart Videohub 12G 40x40, HyperDeck Studio 12G and various converters and monitoring products.
This OB van, built around Blackmagic Design’s 12G-SDI workflow, will be showcased on OB van builder Beijing Huanda Automobile Assembly Co., Ltd.’s CCBN 2019 booth at #W016.
China Media Group and Guangdong TV is launching China’s first two 4K channels in October 2018 and China’s broadcast industry has been proactively building integrated media infrastructures responding to the media convergence tendency. To get prepared for the future 4K and integrated media live production challenges, Anhui TV decided to build their first 4K integrated media OB van that supports new media technologies and traditional broadcasting methods including satellite, cable, terrestrial, and digital radio.

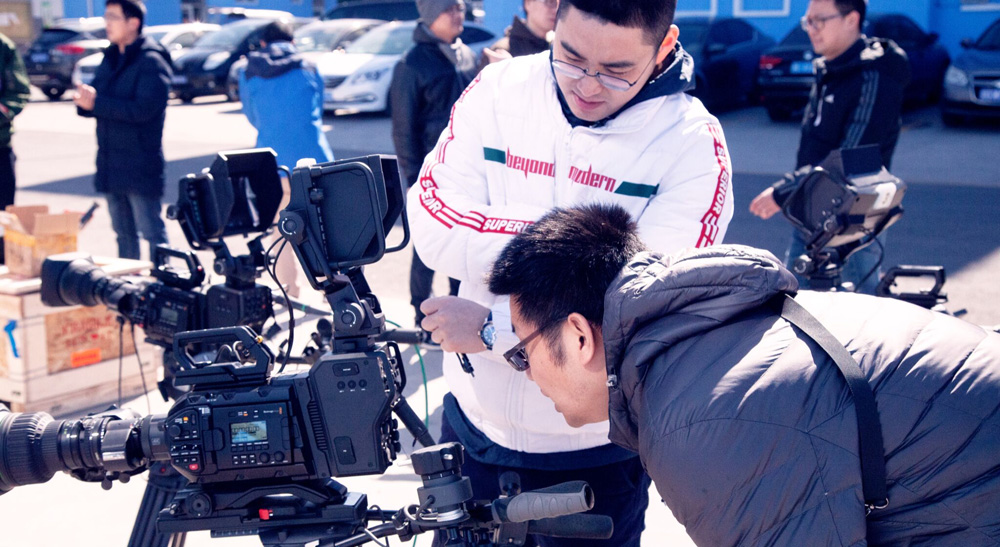

This OB van includes four URSA Broadcast cameras with SDI video output embedded with audio, tally and talkback from each URSA Broadcast converted by a Camera Fiber Converter on the back of the camera to optical fiber. Signals are then sent along a single SMPTE fiber cable to a Studio Fiber Converter on the OB van, which converts it back to two SDI feeds, with one going to the main ATEM 4 M/E Broadcast Studio 4K and the other going to a Teranex Mini Distribution. The Teranex Mini Distribution splits the signal to five SDI inputs going to the backup switcher ATEM Television Studio Pro 4K, Smart Videohub 12G 40x40, SmartScopes 4K and a connection panel.
For incoming feeds different from the project format, six Teranex AV standards converters are installed to convert the feeds before sending them to the router. Some more Teranex AVs are used to convert programs from switchers to standards transmitters support when needed.
Also integrated into the OB van are Blackmagic Multiview 4, Multiview 16 and SmartScopes 4K and SmartView 4K for video monitoring. Programs are recorded onto a HyperDeck Studio 12G recorder while a Blackmagic Audio monitor 12G is used for audio monitoring and DaVinci Resolve system is available for quick postproduction if necessary.
”This OB van will be mainly used for breaking news live broadcasts. That means it has to be reliable and efficient,” said Luo Xiaobin, deputy section chief of transmission section of master control of Anhui TV, who was in charge of designing and building the OB van system.
He explained why they decided to choose Blackmagic Design’s 12G-SDI workflow for the OB van. “The SDI workflow is what the broadcast industry has been familiar with for years. So the 12G-SDI 4K Blackmagic Design solution would be perfect for us because it means the way of productions and transmission is the same as how we handled HD in the past. It would bring us efficiency, which is critical in the fast paced live environment, allowing us to get to know the new products quickly, get the system ready for productions quickly and solve problems, if any, quickly,” he said. “Blackmagic Design was one of the world’s first 12G-SDI product makers and we saw the OB van demonstrated on Blackmagic Design’s BIRTV booth to showcase their 12G-SDI workflow in 2016, whose total cost was much lower than competing products, which was impressive.”
Their experience with Blackmagic products in the past also gave them confidence. “In 2017, to add production abilities to our satellite uplink vehicle, we installed an ATEM Television Studio HD. In the past two years, it has been reliable. We also saw Blackmagic products used extensively in provincial level broadcasters. For example, the video router at the heart of Chongqing TV’s master control, taking care of all the video routing and distribution, is Blackmagic Design’s Universal Videohub.”
Luo noted that, in terms of reliability of a large broadcast system, no product is 100% reliable even when it’s the most expensive device, and you must have backup components for redundancy. “The costs of Blackmagic products are much lower, allowing us on a limited budget to add more backup components to the system, so even when a key component fails, the live production won’t be affected. For example, our main switcher is the ATEM 4 M/E Broadcast Studio 4K and we have an ATEM Television Studio Pro 4K as the backup switcher. Even when the two switchers have failed, we will still have the Smart Videohub 12G 40x40 router to make sure the production goes on without being interrupted. The three components are backups for each other, enhancing the reliability.”
The versatility of Blackmagic products was helpful for the OB van system design. Luo said: “Almost every Blackmagic product is like an all in one product. Let’s take the ATEM switcher for example. Each of its inputs includes a frame synchronizer and the switcher itself supports audio embedding and de embedding. Plus, the switcher even has a built in audio mixer. That allowed us to simplify the system, meaning the number of points of failure was reduced and the reliability of the system was further enhanced.
Luo thinks compared to traditional broadcast products, Blackmagic products are simpler, more practical and intuitive. “Most of our work is doing breaking news. The simpler the equipment, the more efficient the crew and the smaller chance of making mistakes.” he said.
Building the 4K OB van with Blackmagic Design’s 12G-SDI workflow, Anhui TV has found a new way of building integrated media production infrastructures through their exploration of new technologies. “In the broadcast industry, the people are the most important factor that drives the industry forward. Only if the people are curious and hungry for new products and technologies, they will proactively try something new. Through building this OB van, I feel it’s worth studying Blackmagic products more deeply. The deeper, the more creative you will get, which gives you more inspirations and simpler ways to achieve your design goal,” Luo concluded.
