Streaming SolutionsMatrox Video Products Group is a technology and market leader in the field of HD and SD digital video hardware and software for accelerated H.264 encoding, realtime editing, audio/video input/output, streaming, A/V signal conversion, capture/playout servers, channel-in-a box systems, and CGs. Matrox's Emmy award-winning technology powers a full range of multi-screen content creation and delivery platforms used by broadcasters, telcos, cable operators, post-production facilities, videographers, and A/V professionals worldwide.
Professional Video Streaming and Recording Appliance

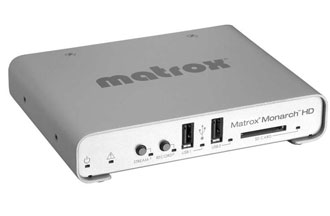

Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience while you control the quality of the archive.
From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.
Record master quality video while streaming
If an event is worth streaming, it is worth recording at the highest possible quality. The better the recording quality, the more value it offers a post event produced asset. These assets can be made available to your audience as fast turnaround VOD files or as fully post produced highlight reels.
Matrox Monarch HD supports sharing the H.264 encoder between the streaming and recording processes so recording quality and upload bandwidth are independent of each other. A typical setting will let a user record a master quality file at 25 Mbps while simultaneously streaming at a bitrate of 5 Mbps. As a dedicated streaming or recording appliance, Matrox Monarch HD can stream at bitrates up to 20 Mbps or record at bitrates as high as 30 Mpbs.
Matrox Monarch HD injects the highest quality video into every bit regardless of input source or target bitrate. Combining the power of the built-in H.264 encoder with Matrox’s high quality deinterlacing and scaling engines guarantees stunning results.
Ready to edit and upload with MP4 and MOV
Matrox Monarch HD gives the option of recording high quality H.264 video as MP4 or MOV files. These formats offer maximum versatility for use in any application. Upload a file to your own web server or to a Content Delivery Network (CDN) like YouTube. Alternatively, you can directly import the file into most creation tools without the need for file transcoding.
Robust and Practical Design
Powerful and robust, Matrox Monarch HD offers simple, one touch stream and record pushbuttons, low power consumption, a locking power connector, and a fanless design. Matrox Monarch HD's HDMI output makes it easy to monitor what you are streaming and recording, regardless of whether the signal received from a camera, a switcher, a signal convertor, or a computer. All eight channels of embedded audio can be passed from the HDMI input to HDMI output ports. Two channels of analog audio input with loopout are also available via 1/8" stereo jacks. Its design allows Matrox Monarch HD to be just as easily located on a desktop as in a rack–up to three units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back.
Easily reach your audience
Whether you’re providing live content to Flash or Wowza servers, or to any of the popular CDNs, Matrox Monarch HD’s flexible streaming internet protocols’ support is up to task. Its useful encoding presets let you select the most appropriate resolution based on the available bandwidth. The target encoding streaming parameters only need to be entered once and saved as a unique profile. Multiple profiles can be saved if the device is used in different environments. Each profile can be loaded instantly without having to reenter data.
Record to anything
Matrox Monarch HD lets you select from a variety of recording media types. Use a USB key or drive when portability is important. A SD card might be your best option when a more secure and compact solution is required. Alternately, a system drive on a computer found on the network may prove extremely useful if multiple individuals need to access the footage. Regardless of where you store the footage, the record controls can be executed without affecting the streaming operations. High quality files are available anytime during the streaming session for creating complementary video assets.
Remote Command and Control
A simple web page is all that is needed to harness the power of Matrox Monarch HD. You can control and configure the appliance using any device on your network that supports a standard web browsing application. A single Matrox Monarch HD device can act as a master to multiple slave devices. From a single web page, you can simultaneously start the recording and/or streaming of up to four Matrox Monarch HD devices.
Integrate Matrox Monarch HD into you own application
The very simple Monarch HD Control API has an HTTP-based API that lets users and system integrators create their own control software to start, stop and get the status of a device. The Monarch HD Command Center Web UI is used to initially configure the device with streaming and recording parameters and, once set up, users have the flexibility to control the unit using the Command Center Web UI controls, on-device buttons only or their own applications written using the Control API.
View or download the Monarch HD Control API documentation

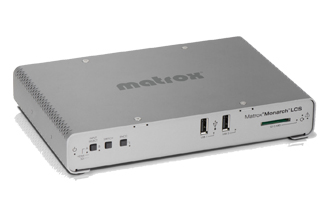

Your Ideal Lecture Capture Appliance
IT administrators will find this reliable, standalone network appliance simple to set up and integrate into any open Video Management System (VMS) or Lecture Management System (LMS). Monarch LCS lets you easily define profiles for live streamed and recorded lectures by mixing camera and presentation material from SDI and HDMI sources. Once configured, this versatile H.264 encoding appliance can be operated by anyone at the push of a button. And it won’t break your budget!
Variety of Operating Modes
Complex recording equipment is no longer required to effectively capture presentations in lecture halls. A typical setup would consist of video and audio of the presenter and a computer source with supporting material which can be mixed into a single webcast. The operator can select a number of operating modes that include layouts such as Picture-in-picture and Side-by-side. If the operator prefers to dynamically change the inputs throughout the lecture, the Monarch LCS also offers Switcher mode. With very little set up time, the Monarch LCS can be configured to capture and deliver content such as presentations and seminars in many appealing layouts.
View Dual-Input Modes of Operation.
Viewer Defined Layouts
Keep your audience fully engaged by putting the control in their hands. In Isolated mode, the appliance provides two independent video files or streams. This feature, when used with a compatible 3rd party player, enables the viewer to select their preferred layout. The synchronized streaming or recording of Monarch LCS’ dual inputs are invaluable when such players are used. By aligning video inputs, the viewer can seamlessly switch to their preferred layout while maintaining perfectly synced audio and video.
Easy to Operate
Matrox Monarch LCS can be controlled and configured via the Monarch LCS Command Center using any device on the network that supports a standard web browsing application such as a tablet. The interface is designed for operator ease-of-use and features one-click operation to start encoding from anywhere within the user interface. A number of typical streaming and recording presets are provided that define all of the encoding parameters, including resolution and bitrate. Encoding parameters can be customized and combined with destination and operating mode settings and saved as a unique profile. If the device must be accessed by different users, profiles can be instantly recalled without having to re-enter data.
Simple to Integrate
Designed to work in network environments, Monarch LCS is a network appliance that facilitates a seamless integration into existing infrastructures managed by third party asset management solutions, such as OpenCast VMS and Moodle LMS software. In addition, the scheduler feature supports open source iCal software such as Google calendar which allows you to create a schedule, export to an .ics file format, and easily import to the device. Schedules can be imported at any time and Monarch LCS can be configured to periodically retrieve schedules on your network..
Offering unprecedented quality, Monarch LCS can share up to 20 Mb/s of encoding capacity across its two H.264 encoding channels. Each independent channel has individual bitrate/quality settings and benefits from powerful scaling, deinterlacing, and noise reduction engines that ensure only pristine images are sent to the encoders. When the highest quality is required, each encoder can be set to encode at 1080p30 resolutions.
Set Your Destinations
This dual encoder offers multiple destination options when streaming or recording. When set to recording, an encoding channel captures content in MOV or MP4 files to ensure that video files can be played on virtually any player. Recordings can be stored on local USB drives, SD cards, or network-mapped drives and made available immediately to an LMS or VMS for distance learning. For streaming purposes, the encoders use either RTMP or RTSP protocol to deliver live streams to local media servers or cloudbased CDNs.
4K contribution and remote production encoder

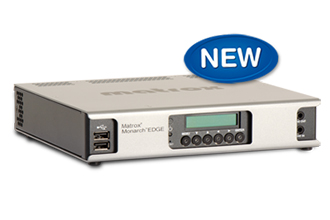

The Matrox Monarch EDGE is a multi-channel broadcast H.264 contribution encoder capable of transporting 4:2:2 10-bit video at resolutions up to 3840x2160 at 60 fps. This low-power appliance with a compact half-width 1RU footprint is equally suited as a 4K web-contribution encoder or as a remote-feed encoder for remote integration (REMI) applications.
Part of the larger family of Matrox encoders, Matrox Monarch EDGE supports a number of encapsulation and transport protocols to deliver video over GigE networks. The optimized H.264 codec minimizes encoding latencies to enable live production applications while also keeping data rates exceptionally low—and without sacrificing quality.
A powerful PC application offers control and configuration capabilities for a single or multiple devices from a comprehensive interface. Whether targeting traditional web contribution applications, REMI, or remote from home (RFH) solutions, ISV and OEMs can take advantage of a flexible RESTful API for custom development and integration.
Dual-Channel H.264 Encoder for Broadcast Streaming and Recording

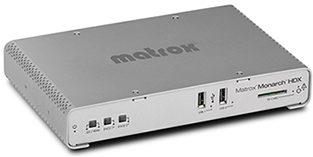

The Matrox Monarch HDX is a simple and versatile video encoding appliance specifically designed for broadcasters and webcasters who need a flexible solution that is powerful enough to take on today’s demanding video delivery workflows. Monarch HDX offers 3G-SDI and HDMI inputs with frame-synchronization to correct any discontinuity at the input, and two independent H.264 encoders that can be assigned to individual tasks. By providing two encoders in a single device, Monarch HDX can tackle any job; from streaming to two different locations, to recording a proxy quality file while simultaneously recording master quality version for post-event editing, to using one encoder for streaming while the other records at higher quality for VOD downloads. Whether used as a live streaming encoder or video recorder, the Monarch HDX can integrate seamlessly into virtually any SD and HD installation.
Powerful, High Quality H.264 Encoding Engine
The Monarch HDX can share 30 Mb/s of encoding capacity across the two channels. Each channel benefits from a powerful scaling, de-interlacing, and noise reduction engine to ensure only pristine images are sent to be encoded.
When used as a webcasting encoder, the Monarch HDX generates an H.264-encoded stream compliant with RTSP or RTMP protocols. You can assign each channel separately to deliver what you need, where you need. Each channel can stream up to 10Mb/s, allowing you to simultaneously stream to two destinations or set the device for up to 20Mb/s streaming quality for a single encoding destination.
Monarch HDX provides a huge amount of flexibility as an H.264 video recorder. Content can be captured in either MOV or MP4 files to ensure that they can be played by your application of choice. Recordings can be stored locally on an SD card, a USB drive, or remotely on a network-mapped drive. Dual channel recording allows the user to simultaneously record content locally and to a drive, which means files are immediately available to anybody on the network, but also provides the assurance that no action is lost even if the network goes down. Furthermore, each recording can be done at a different bitrate should there be a need to deliver the content to devices with varying decode capacities.
Simultaneous Streaming and Recording
The quality of your VOD downloads need never be dictated by the available upload bandwidth. Monarch HDX dual encoders can broadcast a live webstream at one bitrate while simultaneously recording mastering quality H.264 files for immediate availability, such as post event VOD or editing with your NLE of choice.
Selectable HDMI and SDI Inputs and Simultaneous Outputs
Monarch HDX H.264 video recorder can accept signals from HDMI or SDI sources. The input is selected using the web based UI, Matrox Command Center, or directly on the unit itself, allowing for a wide range of connectivity to devices such as cameras, switchers or routers. Additionally, both inputs are complemented by internal frame synchronizers to ensure uninterrupted streaming and recording operations, regardless of the disturbance on the input. The audio is also selectable between the two channels of the embedded video signal or the analog stereo input. Audio may be dynamically muted/unmuted without affecting the video encoding operation.
Regardless of input selection, SDI, HDMI video and embedded and analog audio outputs are live. For SDI workflows, the Monarch HDX recorder has an extremely low pass-through latency with a built-in power-loss relay which, in case of power loss, will route the SDI input directly to the SDI output, ensuring signal path integrity and fail safe design options.
Easily Webcast to Your Audience
Whether you’re providing live streaming content to Adobe Flash or Wowza Media servers, to any of the popular CDNs, or directly to a computer, Matrox Monarch HDX’s flexible video streaming protocol support is up to the task. The Monarch HDX is a certified “Works with Wowza” live video streaming encoder, allowing our users to benefit from enhanced integration with the Wowza streaming engine. As a certified encoder, Wowza Manager can provide an XML file which contains the credentials required for Monarch HDX to easily connect to the Wowza Streaming engine. The Monarch HDX also supports XML files generated for use with Flash Live Media Encoder. These files are often offered by CDNs to allow their customers to easily connect to their service. Both XML files are loaded into the Monarch HDX using the Matrox Command Center, a web based UI.
Control from Anywhere
Matrox Monarch HDX can be controlled and configured via the Monarch HDX Command Center using any device on the network that supports a standard web browsing application such as a computer, smart phone or tablet. Designed for operator ease-of-use, master controls provide one-click operation to start streaming, recording or both from anywhere within the user interface.
The device also provides convenient controls directly on the unit itself to stop/start recording or streaming, and an additional button to assign the input.
H.264 Preview Stream
Monarch HDX H.264 encoder provides a very useful low bitrate preview stream of the input directly in the Command Center UI. This same preview can be viewed using software players such as VLC or on third-party devices, such as Crestron control panels. This stream is available independently of the two encoder channels allowing you to check your video signal before your webcast goes live.
Profiles and Presets
Monarch HDX ships with a number of typical streaming and recording presets that define all the encoding parameters including resolution and bitrate. Whether preset or custom parameters are used, they only need to be entered once and saved as a unique profile. A profile not only contains encoding parameters but also destination information detailing where the encoded video is being sent. Multiple profiles can be saved if the device is used in different environments. Each profile can be loaded instantly without having to re-enter data.
Robust and Practical Design
Powerful and robust, Monarch HDX offers simple, one touch stream and record push buttons, input selection, and a locking power connector. Monarch HDX's HDMI or SDI outputs makes it easy to monitor what you are streaming and recording, regardless of signal source. All eight channels of embedded audio can be passed from any input to any output. When embedded audio is selected, all eighth channels are passed from input to output. When Analog audio is selected, it is both looped out as well as embedded in video outputs. Its design allows Monarch HDX to be just as easily located on a desktop as in a rack—up to two units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back. Finally, the Monarch HDX also features a wide input voltage range of 9 to 24 volts. It can be powered using the Matrox supplied power supply or DC sources such as standard field batteries.
Matrox Utils Application
The Matrox Utils application allows operators to remotely scan and find all Monarch HDX’s present on their network. The Utils application will also scan the attached Monarch HDX and notify the operator if the unit is up to date with its installed firmware version and will also update the device automatically to ensure that it has the latest software release installed. The Matrox Utils application can also be used to reboot Monarch HDX devices present on the network.
