The nanoFlash is a portable HD/SD recorder/player designed to mount on a camcorder. It is also suited for use in a studio environment. The nanoFlash is designed to record higher quality images than the camera itself, using the camera's uncompressed 4:2:2 HD-SDI or HDMI output.

NanoFlash allows recording in native Quicktime or native MXF (software also included to convert formats). The nanoFlash records to low-cost, highly re-usable, CompactFlash cards from many manufacturers; Transcend, SanDisk, Lexar and others. The nanoFlash uses the high quality Sony XDCAM HD 422 CODEC and has selectable Bit-Rates from 18 to 280 Mbps. Enjoy tapeless workflow (affordable Compact Flash) with Universal NLE Support (QT, MXF and MPG). nanoFlash is super-small, lightweight, low-power and has loads of cool record / playback options.

Convergent Design nano3D builds upon the success of the nanoFlash, adding 3D recording and playback with pixel-synced (pixel-locked) playback. Instantaneous playback on set can be to a professional 3D monitor or, if desired, to a large-screen consumer 3D television.

This is possible since the nano3D incorporates built-in 3D combiner/processor functionality; a feature available in separate boxes from other manufacturers for thousands of dollars.

Instantaneous playback in 3D via the low-cost Convergent Design nano3D will greatly enhance 3D productions.

The nano3D consists of:

• 2 x Convergent Design nanoFlashes
• Remote Control Cable with Tally Light
• Remote Control Y-Cable so one Remote Control controls two nanoFlashes
• 9" HDMI Cable (Type C (Mini) to Type C)
• Y-Power Cable
• 18" D-Tap Cable
• nano3D Bracket
• Heavy-duty Power Supply
• Special nano3D firmware installed in one nanoFlash.

The nano3D Upgrade Kit includes all of the above, except that only one nanoFlash is included.

Designed and built by Convergent Design (who brought you the highly acclaimed nanoFlash) the Gemini 4:4:4 is a revolutionary, state-of-the-art, high-definition solid-state recorder / player. Featuring a high resolution, high brightness LCD monitor and support for S-LOG.

The Gemini 4:4:4 is an uncompressed recorder/player which records to solid-state drives (SSDs), with simultaneous recording to two separate SSD's for extra safety, if desired. The Gemini 4:4:4 incorporates a sunlight viewable, very high-brightness, colour accurate LCD monitor. The display features a 5" diagonal and a resolution of 800 x 480 (pixels) which is more than adequate for close-up viewing.

Key Features:

• HD/SD Full Uncompressed Recorder/Player - The Ultimate in Image Quality.
• 100% Accurate Recoding, No Image Quality Lost - No Noise Added!
• No Compromise Recorder even for the highest of high-end 4:4:4 1920 x1080 / 2K cameras.
• Full Support for high-end features such as S-Log, Log-C, etc. Viewing Look Up Tables (LUTs).
• Very attractive and effective workflow for both full uncompressed and compressed workflows using the codec of your choice: ProRes, DNxHD, XDCam 422 and others.
• 4:2:2 Single Link Standard, 4:4:4 Dual Link Standard, HD-SDI 3G Standard 2K Standard.
• 1080p50, 1080p59.94 and 1080p60 Support.
• Exceptional, sunlight viewable, LCD/Monitor included for live monitoring and playback.
• HDMI Output for Monitors and 3D Monitors with optional Full 3D Support.
• Relatively low cost, high performance media, very low cost when compared to media packs for other uncompressed recorders.
• Industry First: Simultaneous Recording to two separate Solid State Drives (SSD's).
• Industry's lowest power, most compact size, lightest weight, lowest price.
• 16 Channel 24-Bit/48K Audio, with two channels of analogue audio.
• Compliments the Convergent Design nanoFlash, does not replace it.
• Exceptionally and affordably priced, including a high-speed transfer station and a custom fitted hard case with foam for the unit, AC power supply, cables and accessories. Media is not included so that you may select SSD's to meet your specific needs.
• Exceptionally competitive media pricing and record times, per minute, comparable to Panasonic E-Series P2 cards.
• Media priced far lower than the same amount of lower performance CompactFlash cards.
• Affordable for the ultimate in quality: full uncompressed images.
• Planned Enhancements:  Full 3D Support (an extra cost feature).

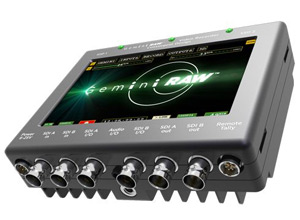

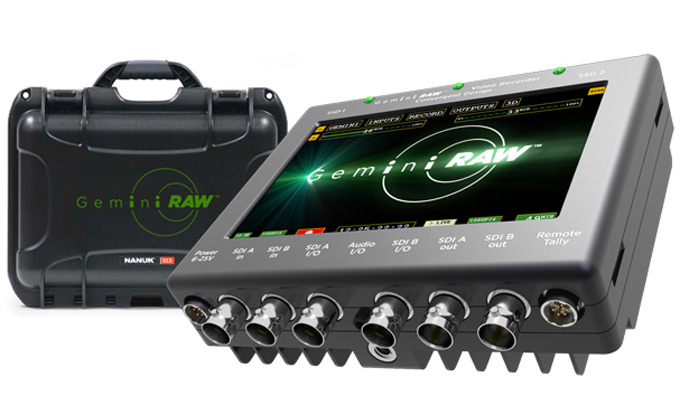

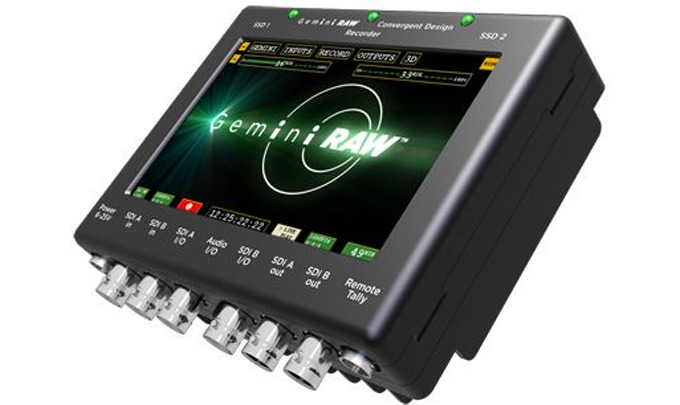

Convergent Design announced the newest member of their recorder series: Gemini RAW. This fifth generation design supports 4K RAW recording with live-preview and playback to a 4K monitor. Gemini RAW includes many industry leading, one-of-a-kind features, such as four camera recording / quad-split playback (in HD), AVID DNxHD™ CODEC (RGB and YCC), uncompressed RGB 444, stereo 3D, simultaneous recording of RAW/Dailies, and 120fps support (in 2K/HD).

Gemini RAW is a solutions-based recorder for digital cinema and multi-camera productions. It offers all the features of its' award-winning 4:4:4 counterpart, with significantly greater processing power, while retaining the same size, power, and weight. A key feature of Gemini RAW is the six programmable 3G-SDI ports which can be configured as 4-In/2-Out or 2-In/4-Out. This innovative capability enables many unique configurations such as quad-input record /quad-split display or single-stream 4K RAW recording /4K monitoring. Furthermore, multiple stereo 3D output options include luma differencing, side-by-side, and anaglyph, among others.

Gemini RAW offers a future-proof solution that allows recording in high-quality HD (in DNxHD-220) and simultaneously in RAW / uncompressed. You can use the DNxHD footage for fast turnaround projects while archiving the RAW for future, higher-resolution / higher-quality productions. Alternatively, if your project requires RAW today, simply record RAW and DNxHD-36 proxy (for your dailies/offline work). Either workflow simplifies post-production while protecting your digital assets for future revenue streams.
