Universal Videohubs

Build your own router in SDI or optical fiber with single and redundant cross-points

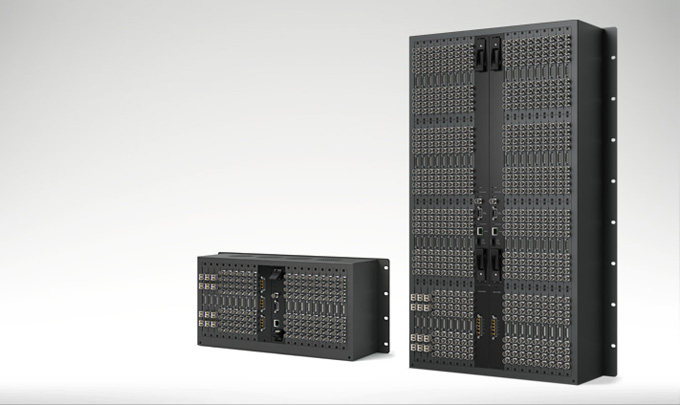

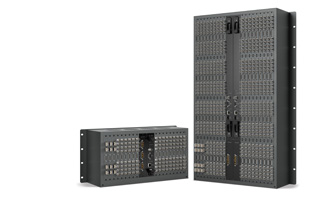

Universal Videohub lets you build your own broadcast quality 3 Gb/s SDI and optical fiber SDI router for SD, HD, 4:4:4 and 2K video formats. Universal Videohub frames come in a choice of two sizes that let you expand your router up to either a 72 x 72 or 288 x 288 crosspoint size. Every interface module in the router is card based, with each card featuring 4 inputs and 4 outputs. Mix and match interfaces and build a router with all SDI, all optical fiber SDI or a combination of both. With the exciting new Universal Videohub Editing Interface you can capture and playback through your router using a computer with Thunderbolt technology!

Build it Yourself

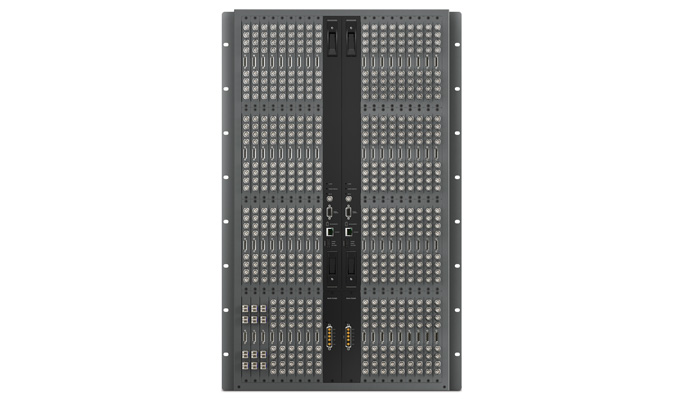

Universal Videohub ships unpopulated, without any cards plugged in, so you are free to build your router any way you want! For example, you can plug in BNC SDI cards and optical fiber SDI cards in any combination depending on the equipment you have. This makes it easy to partially load SDI interface cards, to start at an affordable size, and then add more SDI interface cards over time to grow to a massive 288 x 288 size! To make scalability even easier, the cross point card and power supply cards from the Universal Videohub 72 can be plugged into the Universal Videohub 288. Only Universal Videohub lets you upgrade to a larger rack frame and keep their entire investment in interface cards and power supplies!

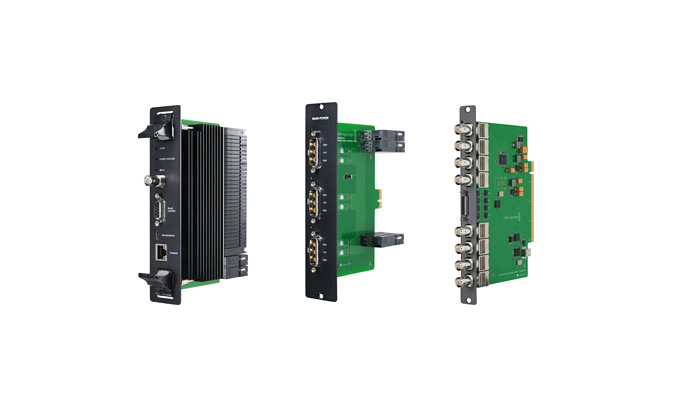

Expansion module options include:

• Optical fiber interface
• SDI Interface
• Universal remote cable
• Editing Interface with Thunderbolt I/O Technology
• Selection of power supplies to suit your requirements
